01

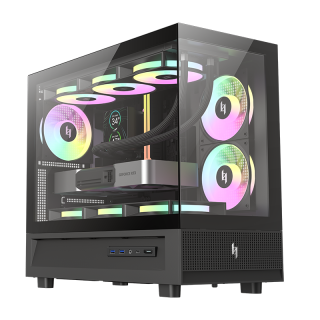

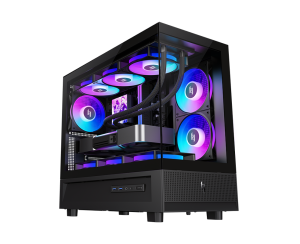

270° PANORAMIC VIEW
Tempered glass panels on the front and left sides provide a clear view of the interior.

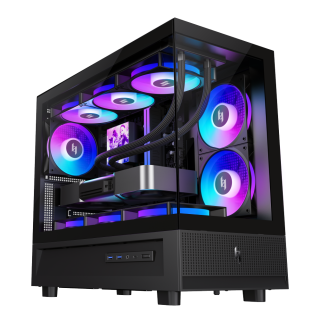

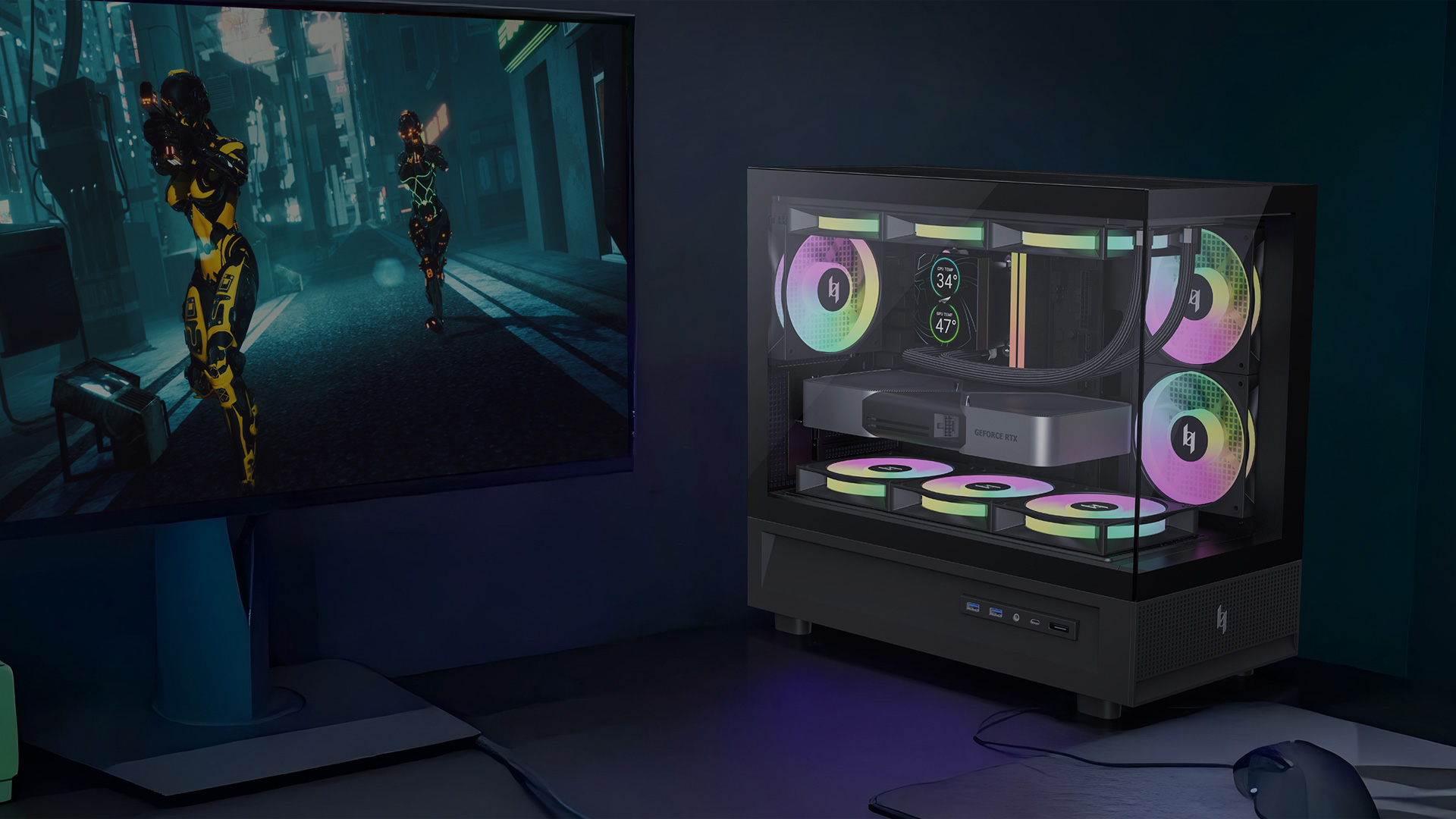

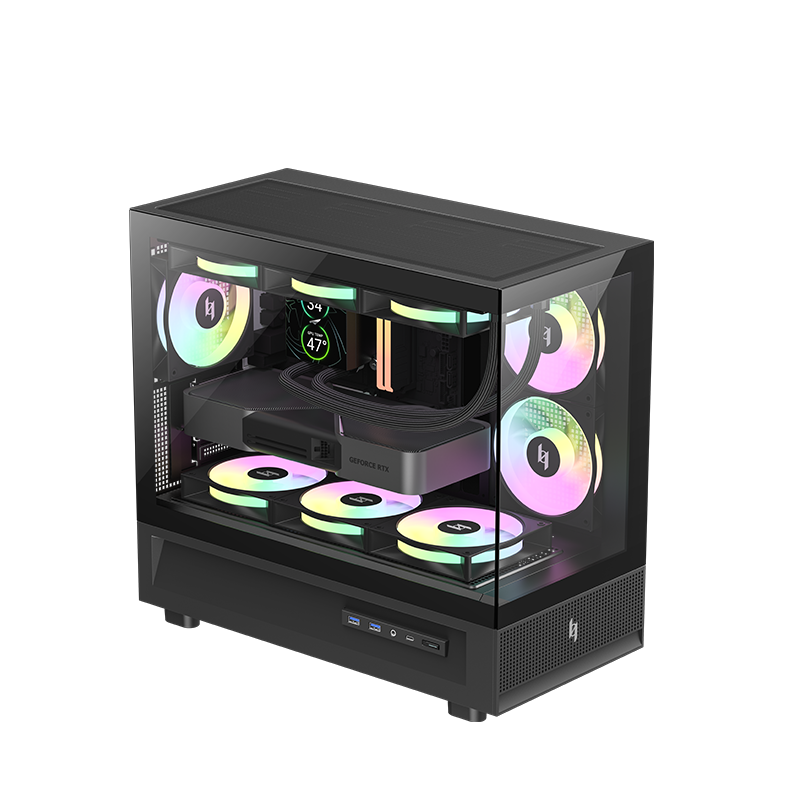

NEX C31 BK
M-ATX GAMING CASE
02

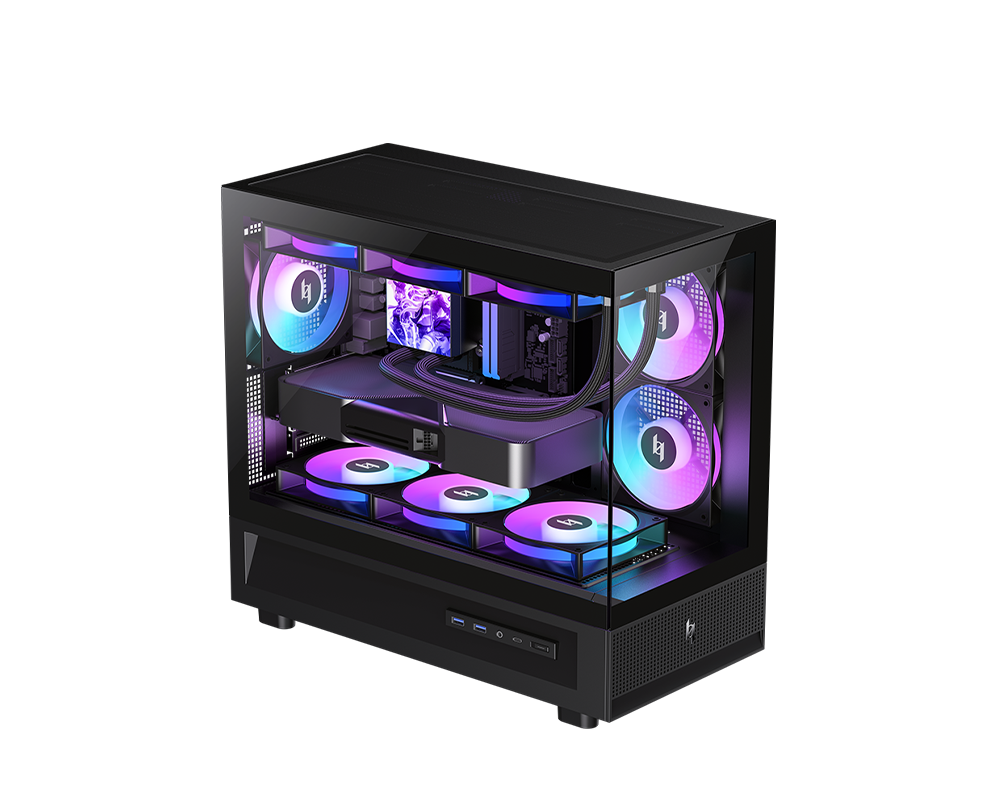

EFFICIENT COOLING AIRFLOW
Supports both air cooling and liquid cooling solutions. Features a separated power supply compartment for efficient cooling. Quickly dissipates heat, ensuring stable computer operation.
03

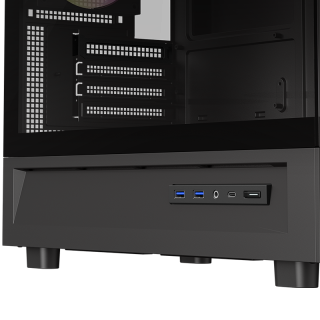

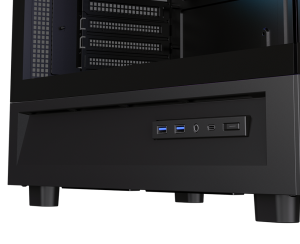

MODERN I/O PANEL
The I/0 panel features geometric cutting, delivering strong dimensionality and a sleek, contemporary design aesthetic.
Reinforced and convenient

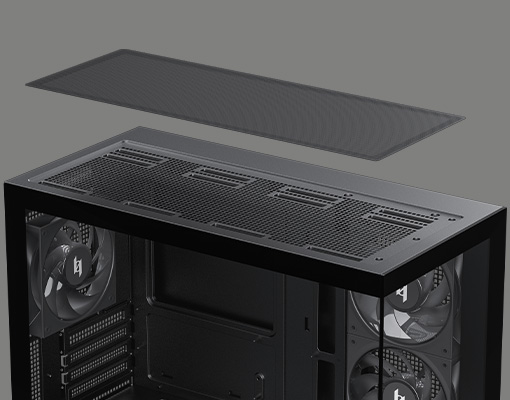

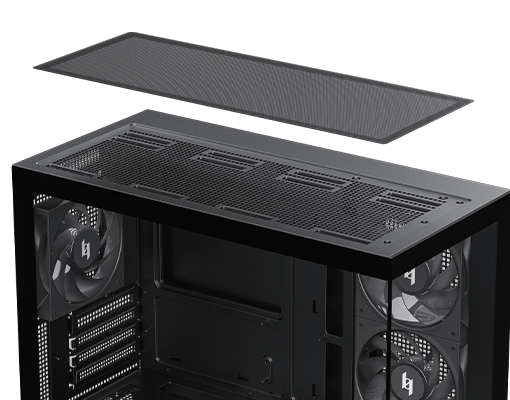

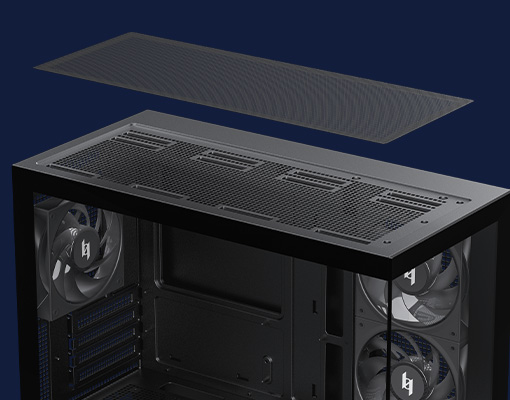

Top Magnetic Dust Filter

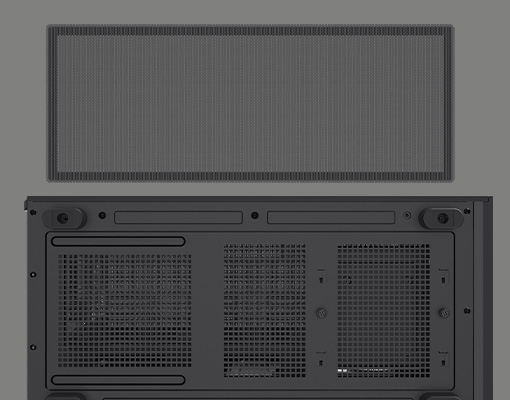

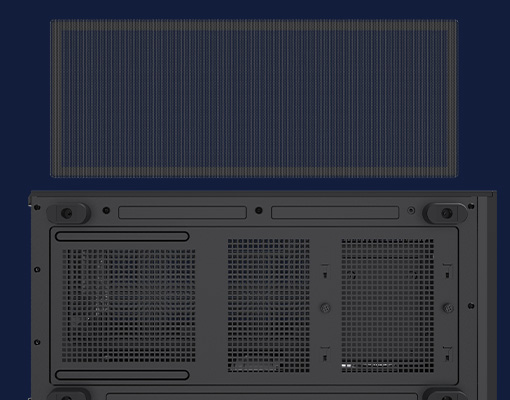

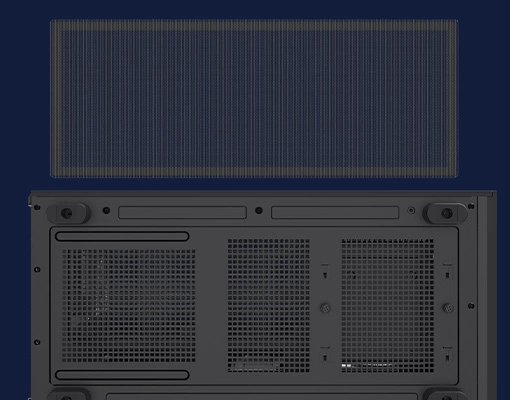

Bottom Dust Filter

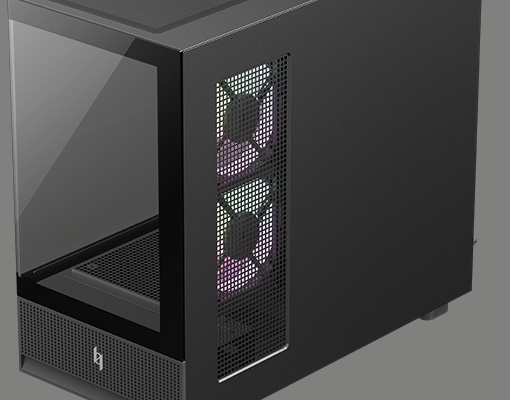

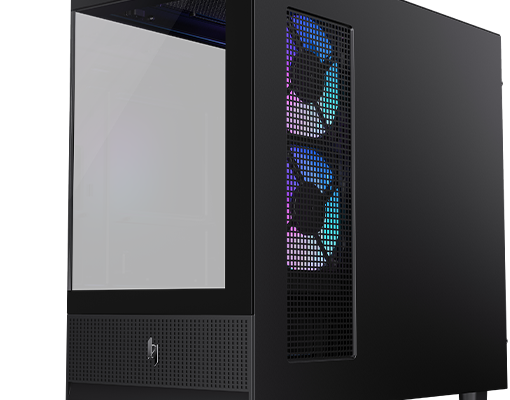

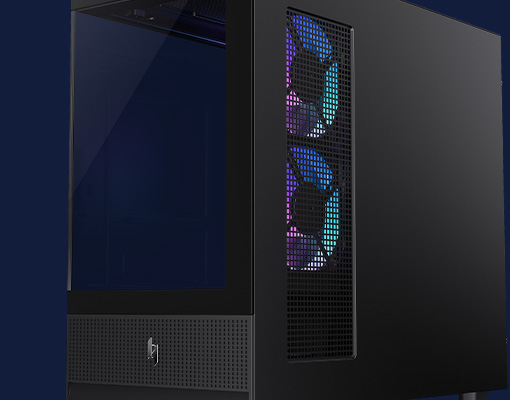

Right Side Panel with Integrated Stamped Grille Design
Compatibility
Compatibility and size
Tech Specs
Technical specifications
| Product Dimensions | 449×222×415mm(L×W×H) |
| Carton Dimensions | 537×295×502mm(L×W×H) |
| Net Weight | Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | ITX / M-ATX |
| Front I/O Ports | USB3.0×2、Tpye-C×1、Audio×1 |
| 3.5" Drive Bays | 1+1 |
| 2.5" Drive Bays | 1 |

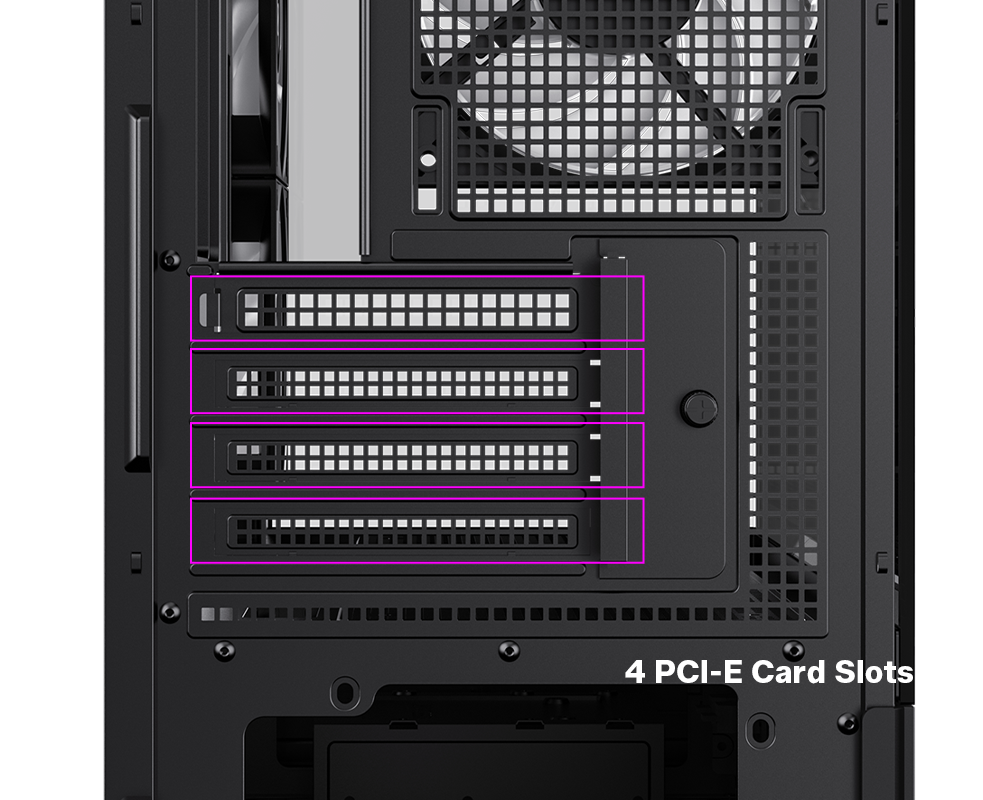

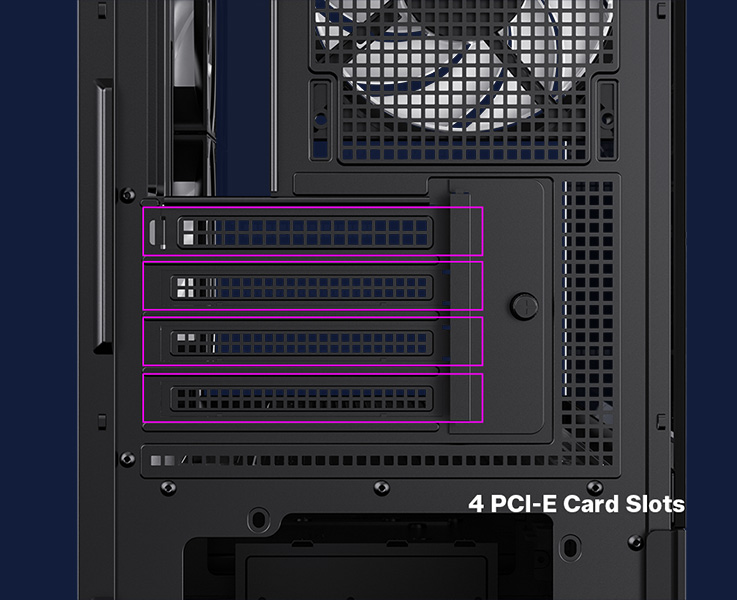

| Expansion Slots | 4 Slots |

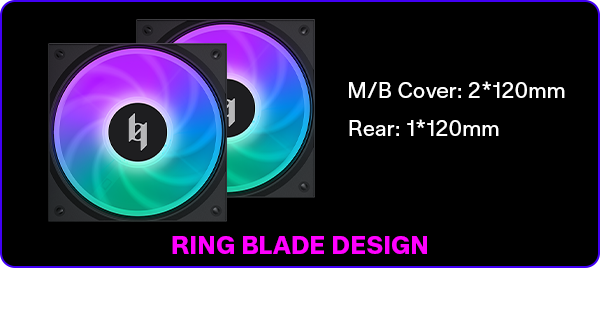

| Pre-Installed Fans | Rear: 1×120mm M/B：2×120mm |
| Fan Support | Top: 3×120 / 2×140mm Rear: 1×120mm Bottom: 3×120mm M/B: 2×120mm |
| Radiator Support | Top: 120/240/360mm Rear: 1×120mm |
| CPU Cooler Height Limit | 180mm |
| GPU Length Limit | 410mm |
| Power Supply Type | ATX PS2 （maximum length: 200mm） |
Review Doc
Downloads and documents
Official review materials and downloadable product documents.
The product displays on the above pages are for reference only, may have slight differences from the actual products, and the actual products shall prevail in all cases.
