Engineered to handle translent power splkes of next-generation GPUs, supporting up to 200% total system power excursion and 300% GPU transient load.
Verified efficiency for optimized power consumption, reducing heat and operational costs for consistent gaming performance.
High-spec silent fan rated for 40,000 hours MTBF with intelligent temperature control.
Comprehensive PSU protection suite including OVP, UVP, OCP, OPP, SCP, OTP, SIP, and No Load Operation.
Built exclusively with top-tier brands (Rubycon, NCC, Nichicon) for superior reliability and long-term stability.
Advanced power topology for stable and efficient performance.
The "brain" controlling 8 critical safety functions (OPP, OCP, SCP,etc.)

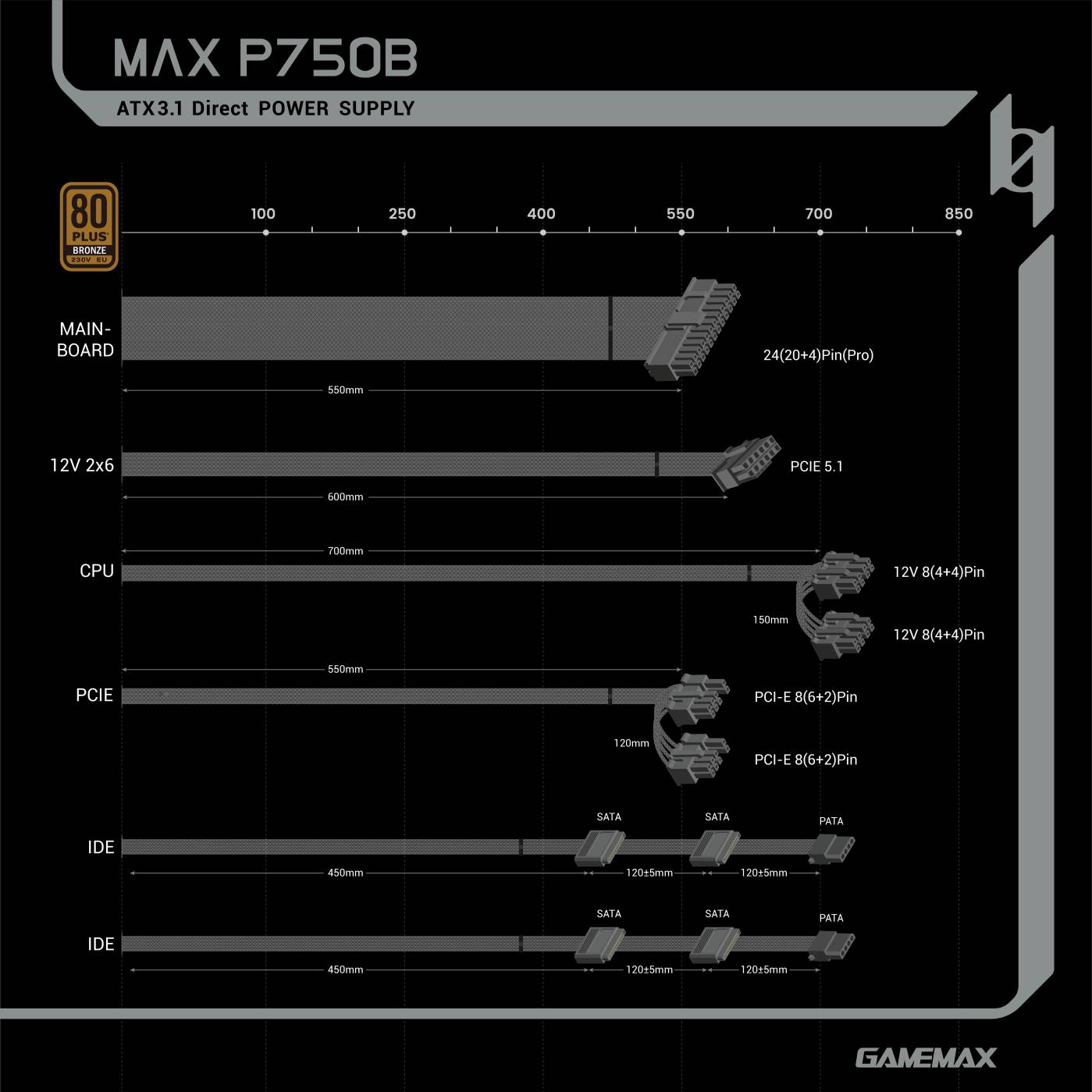

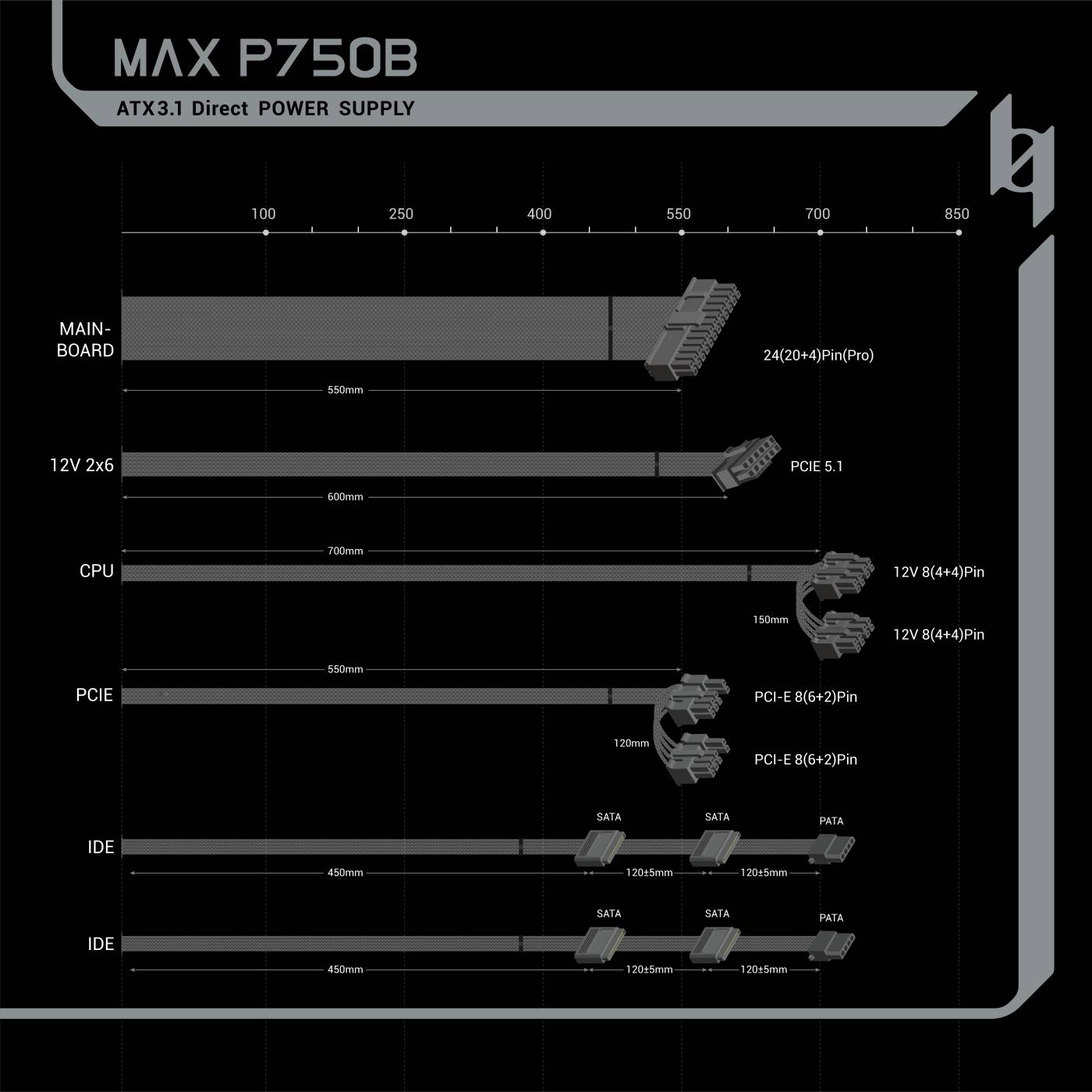

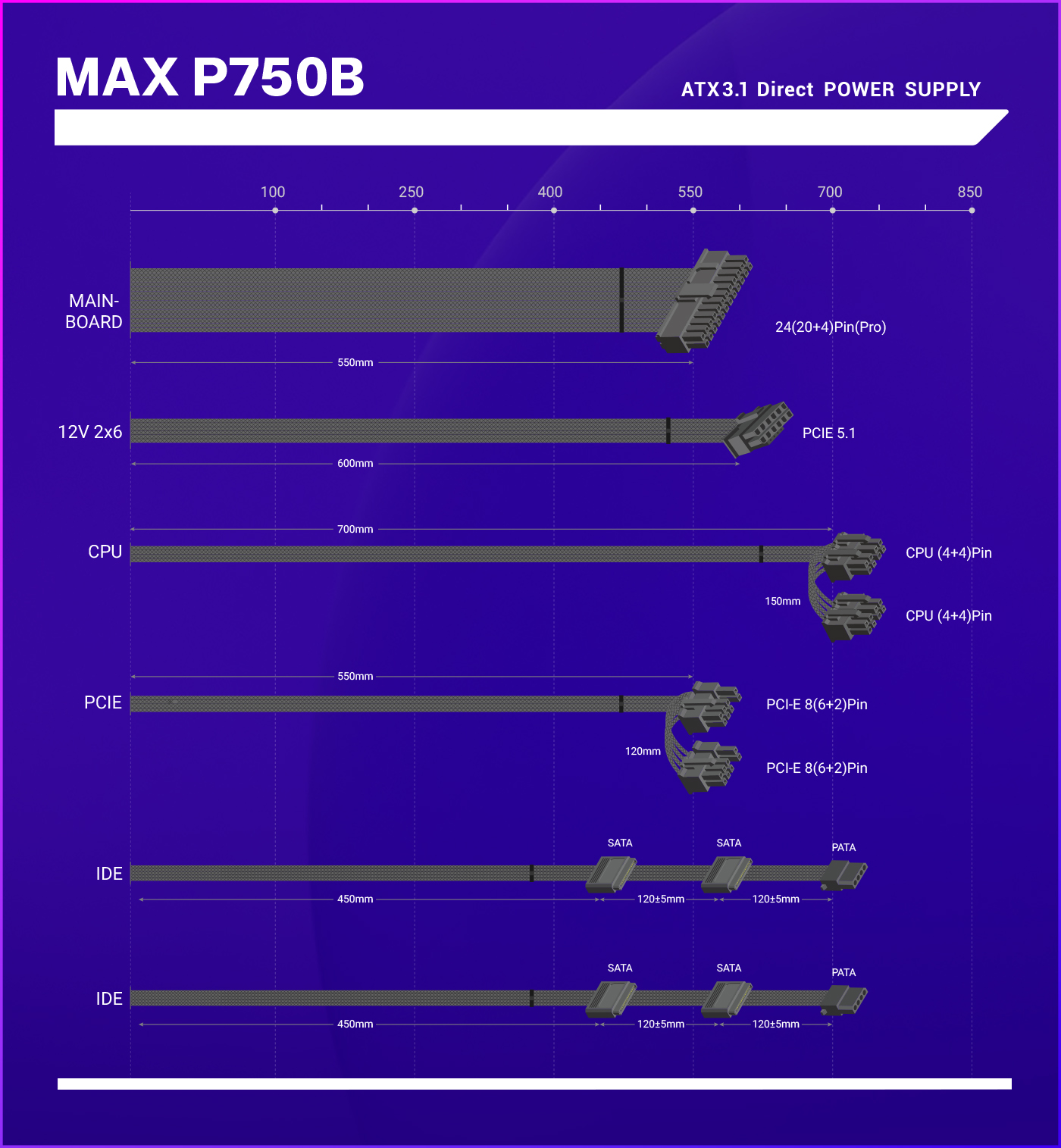

100% copper output cables with embossed texture for easier routing and a clean, professional look.
| Type | ATX12V V3.1 |
| Product Net Weight | |

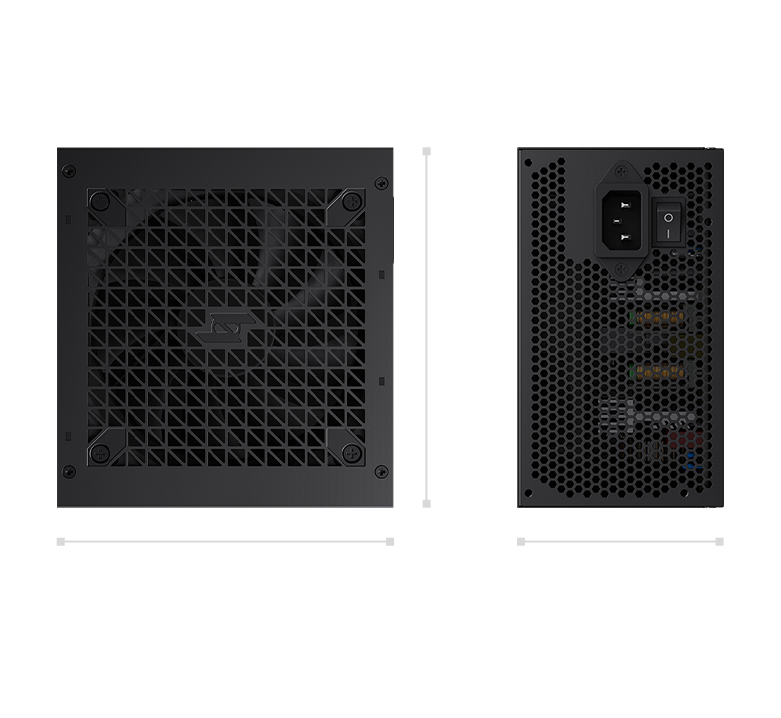

| Product Dimensions | 140×150×86mm |

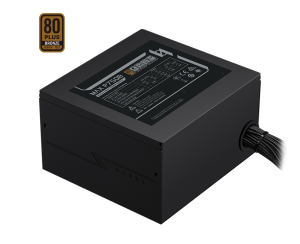

| Efficiency certification | 80Plus 230V EU Bronze |
| Fan Size | 120×120×25mm |
| Fan Bearing | Hydro Bearing |
| Topology | Active PFC+Double forward+DC to DC |
| Capacitors | Full Japanese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms 80% load |
| Efficiency | ≥88% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/CCC/TUV-SUD/RCM |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/Triman/中国RoHS |
| Warranty | 3Years |
Official review materials and downloadable product documents.
